NMEATime2: PC GPS Time Synchronization Software

In an era where precise time synchronization is crucial for various applications, NMEATime2 emerges as an essential tool for those relying on GPS signals to discipline their PC clocks. Whether for scientific research, radio communication, or network operations, maintaining an accurate system clock can make a significant difference. This blog post delves into the features, functionality, and benefits of NMEATime2, a software designed to synchronize your PC clock using data from a GPS receiver.

What is NMEATime2?

NMEATime2 is a specialized PC time synchronization software that disciplines the computer’s clock using data derived from an NMEA-compatible GPS receiver. By leveraging the precise timing signals from the Global Positioning System (GPS), NMEATime2 ensures that your PC maintains accurate time, reducing discrepancies and eliminating drift.

The software operates as a system service, meaning it runs in the background without requiring user intervention. Using sophisticated digital filtering techniques, it mitigates jitter and ensures high-precision clock synchronization comparable to high-end oscillators like OCXO (Oven-Controlled Crystal Oscillators) and atomic rubidium clocks.

Key Features of NMEATime2

• Advanced Digital Filtering: The software uses a control loop that disciplines the PC clock based on the NMEA strings received from the GPS unit, reducing timing jitter and improving accuracy.
• System Service Mode: Unlike conventional applications, NMEATime2 runs as a Windows service, providing continuous and reliable time synchronization.
• Compatibility with USB and Serial GPS Devices: Many modern GPS receivers connect via USB rather than RS-232. NMEATime2 is designed to work with these devices, recognizing them as USB-to-serial communication ports.
• Supports Various NMEA Sentences: The software primarily relies on the GPGGA and GPRMC messages but also utilizes GPZDA, GPGSA, and GPGSV for enhanced accuracy.
• Graphical Time Difference Plot: Users can visualize synchronization performance through a real-time plot that highlights any discrepancies and correction actions taken by the software.

System Requirements

To use NMEATime2 effectively, your system must meet the following requirements:

• Operating System: Windows 7, 8, 8.1, or Windows 10.
• A GPS receiver capable of outputting NMEA sentences via USB or a serial (RS-232) port.
• The GPS unit must be configured to transmit specific NMEA messages at defined intervals:
  • GPGGA – Must be sent once per second.
  • GPRMC – Must be sent once per second.
  • GPZDA – Must be sent once per second (preferred for time reference).
  • GPGSA – Every two seconds.
  • GPGSV – Every two seconds.

Installation and Setup

Step 1: Download and Install

NMEATime2 is available as a free trial for 30 days, after which users need to purchase a license for $20.48 USD. Before installing a new version, it is recommended to uninstall any previous versions.

Step 2: Connect Your GPS Receiver

Ensure your GPS receiver is properly connected to your PC. If using a USB GPS device, ensure that the necessary drivers are installed so that the device appears as a serial (COM) port.

Step 3: Configure the Software

• Open NMEATime2 and select the appropriate COM port where your GPS device is connected.
• Verify that the software is receiving NMEA messages from the GPS.
• Enable automatic synchronization to allow the system service to discipline the PC clock continuously.

Step 4: Monitor Performance

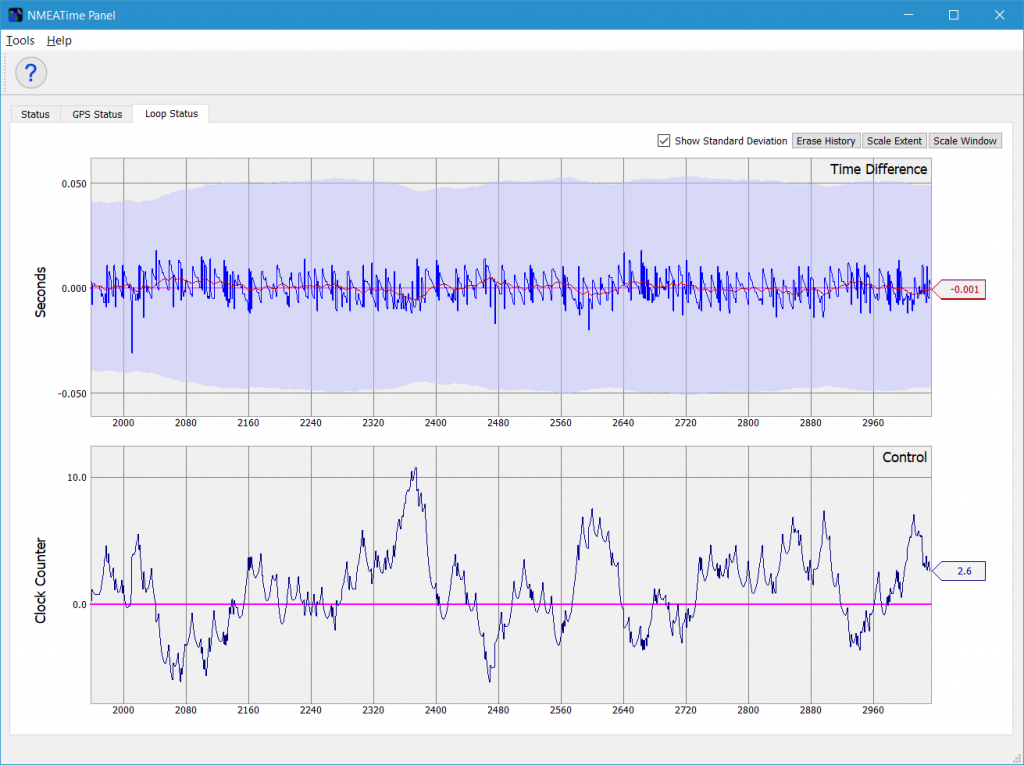

NMEATime2 provides a visual representation of synchronization accuracy. The red line in the Time Difference Plot represents digital filtering in action, minimizing software jitter and improving time precision.

Why Use NMEATime2?

For users requiring precise timekeeping, NMEATime2 is an excellent alternative to internet-based time synchronization methods like NTP (Network Time Protocol). Unlike NTP, which relies on network connectivity and introduces potential delays, NMEATime2 directly references GPS signals, ensuring unmatched accuracy.

Additionally, professionals in amateur radio, astronomy, and scientific research often need highly precise timekeeping. For example, APRS (Automatic Packet Reporting System) and FT8 (a digital mode for amateur radio communication) depend on accurate timestamps, making NMEATime2 a valuable tool for radio operators.

Usage in Amateur Radio

Time synchronization plays a crucial role in amateur radio, especially in digital modes and satellite tracking. Here’s how NMEATime2 benefits radio operators:

• FT8 and Other Weak Signal Digital Modes: FT8, JT65, and other weak signal modes rely on precise timing to ensure successful communication. Even a small time drift can prevent successful decoding of signals. NMEATime2 ensures that your PC clock stays in sync with GPS time, reducing the risk of missed contacts.
• APRS and Packet Radio: APRS (Automatic Packet Reporting System) relies on accurate timestamps for proper data transmission. A synchronized PC clock ensures correct timing in beacon transmissions, making tracking and messaging more reliable.
• Satellite Communication and Doppler Shift Correction: Many amateur radio operators work with satellites for communication, requiring precise tracking and Doppler shift adjustments. Accurate time synchronization allows for better satellite pass predictions and automated frequency corrections.
• EME (Moonbounce) Communication: Earth-Moon-Earth (EME) communication demands ultra-precise timing due to the time delay introduced by signal travel between Earth and the Moon. NMEATime2 helps maintain synchronization, ensuring accurate transmission and reception windows.
• Contest Logging and DX Clusters: Many logging software solutions require accurate timestamps for contest logging and DX spotting. Using NMEATime2 ensures that logs remain consistent with real-time events, preventing discrepancies in contest submissions.

Final Thoughts

NMEATime2 stands out as a robust and reliable solution for PC time synchronization using GPS data. Whether for professional or personal use, it provides a straightforward yet highly accurate method to maintain precise system time. At an affordable price of $20.48, it is a worthwhile investment for anyone who requires GPS-disciplined time synchronization.

If you need accurate PC timekeeping without relying on network-based synchronization, give NMEATime2 a try. The 30-day free trial allows users to evaluate its performance before making a purchase decision.

For more information and to download the software, visit the official website or purchase via PayPal to receive your registration key within 48 hours.
