ANBERNIC RG40XX H: A Powerful Handheld Retro Gaming Console
Overview
The ANBERNIC RG40XX H is a compact and high-performance handheld gaming console designed for retro gaming enthusiasts. With a 4.0-inch IPS display, Allwinner H700 SoC, and 1GB LPDDR4 RAM, it delivers a smooth gaming experience for a wide range of emulators. The console runs a Linux 64-bit operating system and supports over 30+ emulators, allowing users to load their own game libraries.

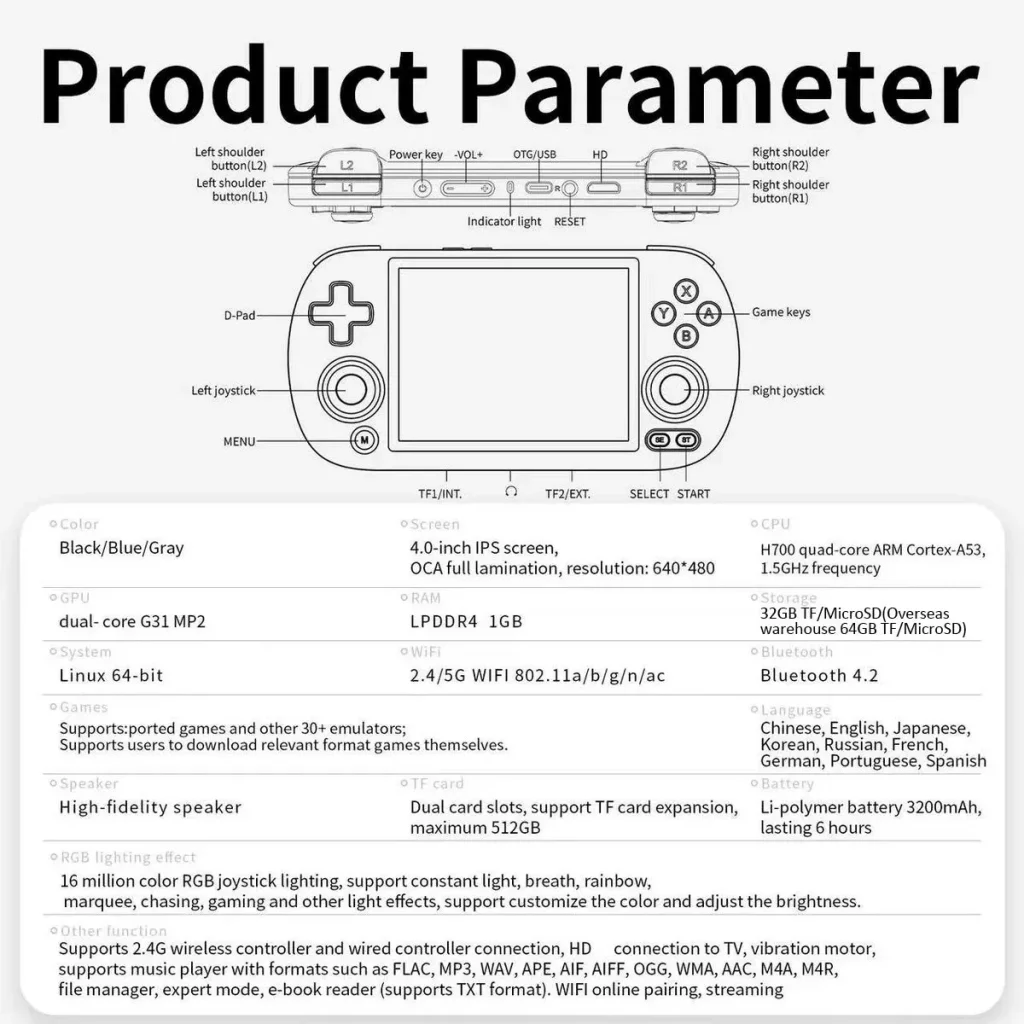

Hardware Specifications
- CPU: Allwinner H700 (Quad-core ARM Cortex-A53 @ 1.5GHz)
- GPU: Mali G31 MP2

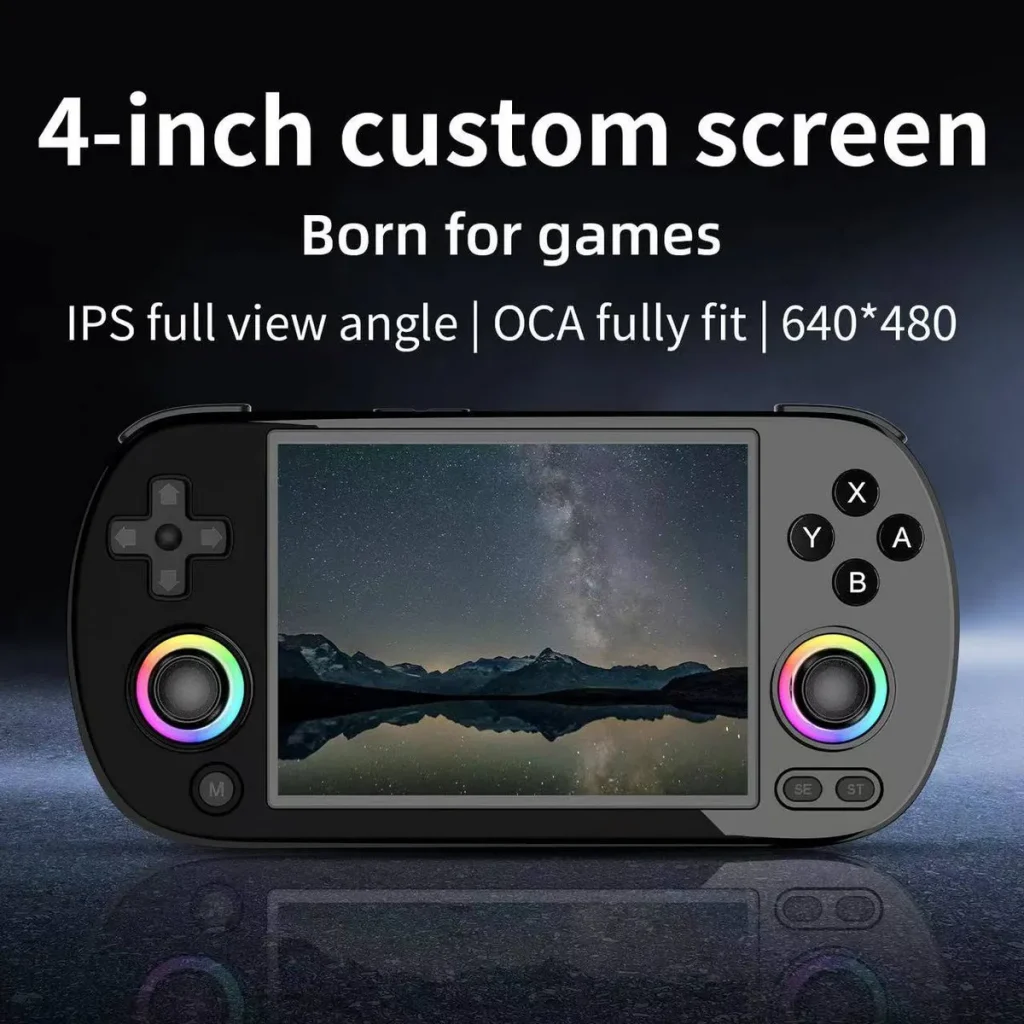

- Display: 4.0-inch IPS screen (640×480 resolution, OCA full lamination)
- RAM: 1GB LPDDR4
- Storage: 32GB TF card (expandable up to 512GB via dual TF slots)
- Connectivity: 2.4/5GHz WiFi, Bluetooth 4.2
- Battery: 3200mAh Li-polymer (up to 6 hours of gameplay)
- Other Features: RGB joystick lighting, vibration motor, HDMI TV output, support for wired/wireless controllers
Software & Firmware Compatibility
The RG40XX H runs a Linux 64-bit OS, supporting ported games and multiple emulation platforms. Users can expand its functionality with alternative firmware like ROCKNIX, which enhances performance, compatibility, and customizability.
ROCKNIX Firmware on RG40XX H
ROCKNIX is an optimized firmware tailored for retro gaming handhelds like the RG40XX H. It includes:
- Mainline Linux Kernel for better hardware optimization
- Panfrost GPU drivers (OpenGL 3.1 / GLES 3.1) for improved graphics performance
- Emulation Station interface for intuitive game management
- Overclocking options (enabling 1.5GHz operation for better emulator performance)
- WiFi & Bluetooth support (can be enabled in Emulation Station under Main Menu > Network Settings)
- Customizable LED lighting effects (power LED customization persists through reboots)
Emulator & Control Support
With ROCKNIX, the RG40XX H gains enhanced compatibility with popular emulators like:
- RetroArch (multi-system emulator with hotkey support)
- Mednafen (PlayStation, Saturn, and PC Engine emulation)
- Mupen64Plus-SA (Nintendo 64)
- PPSSPP-SA (PlayStation Portable)
- Hypseus-Singe (Daphne LaserDisc games)
Global Hotkeys in ROCKNIX
| Button Combo | Action |
|---|---|
| MENU + START (x2) | Quit Game |
| MENU + R1 | Save State |
| MENU + L1 | Load State |
| MENU + Y | Show FPS |
| MENU + A | Take Screenshot |
| MENU + R2 | Fast-Forward |
| L1 + START + SELECT | Exit Emulator |
| MENU + Vol + | Brightness Up |
| MENU + Vol – | Brightness Down |
| START + Vol + | Battery Status |
| START + Vol – | Toggle WiFi |
Conclusion
The ANBERNIC RG40XX H is an excellent choice for retro gaming enthusiasts looking for an affordable yet powerful handheld console. With native Linux support, strong emulation capabilities, and ROCKNIX compatibility, it provides a solid and customizable gaming experience. The ability to overclock, adjust LED settings, and connect to a TV or external controllers makes it a versatile choice for both casual and dedicated gamers.
